Automatic 10–20 T/H Reverse Osmosis Pure Water System

Short Description:

The automatic 10–20 T/H industrial reverse osmosis pure water system offers single-stage or double-stage design and delivers stable pure water at 10–20 m³/h with a 98% desalination rate.

Model: 10–20T
Feed water: Municipal tap water / groundwater meeting the drinking-water standard
Output water: ≤ 5 μS/cm
Application: Potable & beverage water, food & chemical processing, boiler feed water, electronics, electroplating, pharmaceutical

Send email to us Download

Product Detail

Product Introduction

Reverse osmosis (RO) drives feed water through an RO membrane under high pressure, so that the solvent passes from the more concentrated side to the less concentrated side to achieve separation, purification and concentration. Because this is opposite to natural osmosis, it is called reverse osmosis. RO mainly separates dissolved ions; it requires no heating and involves no phase change, and it removes bacteria, viruses, colloids, organic matter and more than 98% of dissolved salts. The method offers low operating cost, simple operation, a high degree of automation and stable product-water quality.

Process Design

Single-stage design: raw-water tank → raw-water pump → sand filter → carbon adsorber → water softener (or metered dosing system) → precision filter → high-pressure pump → RO unit → ozone generator → pure-water tank → point of use.

Single-stage RO pure water system process flow diagram

Double-stage design: raw water → raw-water booster pump → multi-media filter → activated-carbon filter → water softener (or metered dosing system) → precision filter → first-stage high-pressure pump → first-stage RO → intermediate tank → second-stage high-pressure pump → second-stage RO → pure-water tank → pure-water pump → point of use.

Double-stage RO pure water system process flow diagram

Technical Specifications

Parameter	Specification
Model	10–20T
Product Water Flow	10 – 20 m³/h
Product Water Conductivity	≤ 5 μS/cm
Desalination Rate	> 98%
Feed Water	Municipal tap water / groundwater meeting the drinking-water standard
Feed Water Temperature	5 – 45 °C
Process Design	Single-stage or double-stage (as required)
Pre-treatment	Sand filter, carbon filter, softener (or metered dosing), precision filter
Control	Fully automatic, with stable product-water quality

Product Details

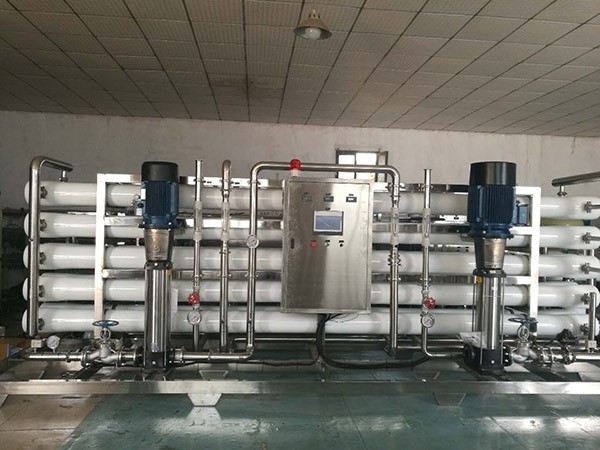

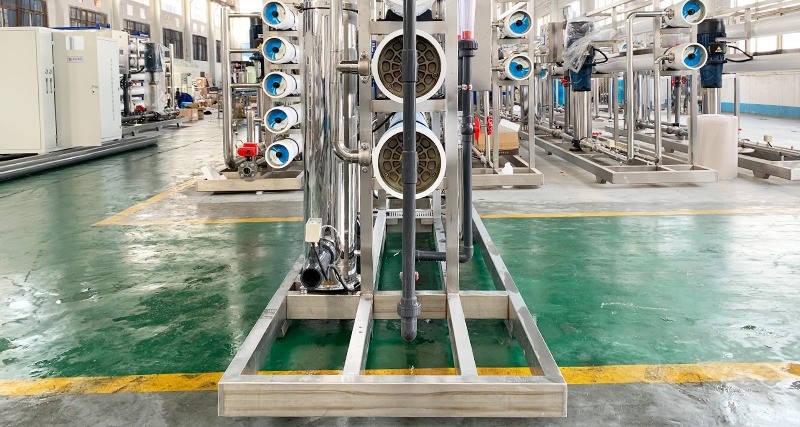

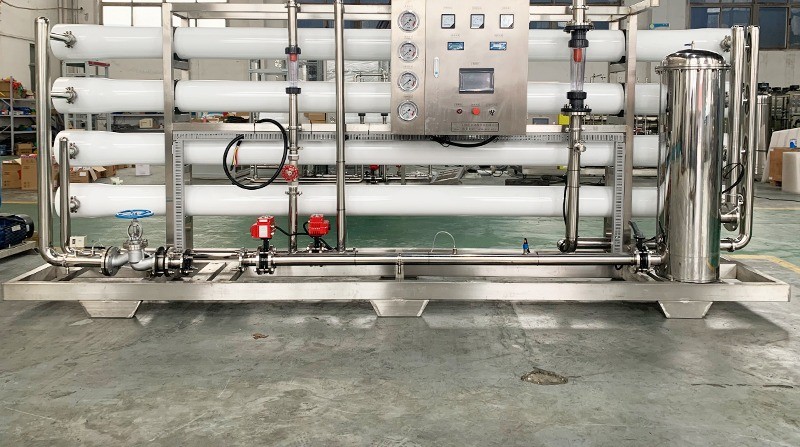

Automatic 10–20 T/H Reverse Osmosis Pure Water System

Applications

Commercial drinking water: purified water, mineral water, soda water, spring water, etc.
Domestic drinking water: residential communities, villages, office buildings, industrial and mining enterprises, and dual-quality water-supply projects
Food and beverage industry: fruit juices, alcoholic and dairy drinks, health products, fruit and vegetable processing, etc.
Textile and printing & dyeing industry: dyeing water, loom water, etc.
Medical and pharmaceutical industry: Chinese-medicine oral liquids, large-volume infusions, medical preparations, etc.
Electronics ultrapure water: electrolytic capacitors, transistors, picture tubes, integrated circuits, etc.
Chemical industry: chemical analysis, solvents and reagents, biological products, daily cosmetics
Seawater and brackish-water desalination: ocean-going vessels, offshore-drilling fresh-water supply, saline-alkali water treatment
Boiler make-up and circulating cooling: boiler softening, central air-conditioning and cooling water
Aquaculture: aquatic products, flower cultivation
